LM3900 Quad Op Amp DIP Kit (#1445)
Price: $9.99
Datasheet:

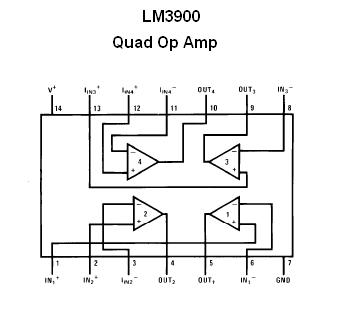

This kit is centered around the very popular National Semiconductor LM3900 Quad Op Amp in the Thru-Hole DIP-14 package. The LM3900is perhaps the world's most popular Quad Op Amp and has been used for decades!!
This kit also includes a tremendous amount of different Thru-Hole components that you would use to develop numerous circuits. Included are different values of Transistors, Resistors (1%, 5%, and POWER), Ceramic Capacitors, Aluminum Capacitors, Tantalum Capacitors, Inductors, Diodes, Trimpots, LEDs, Electret Microphone, and a miniature Speaker. It also includes some electronic hardware that are used in most projects.
With these parts, you can make numerous circuits such as active filters, pre-amps, signal conditioners, function generators and much more. You get the following:
| Type | Part Description | Quantity |
| IC, DIP-14 | LM3900N, Quad Op Amp, Wide Bandwidth | 4 ea |
| Transistor | 2N3904, NPN, General Purpose Amplifier, TO-92 | 4 ea |
| Transistor | 2N3906, PNP, General Purpose Amplifier, TO-92 | 4 ea |
| PCB | NightFire, 162 Holes, FR-4 | 1 ea |
| IC Socket | 14 pin, Low-Profile, Solder Tab | 2 ea |
| Zener Diode | 1N753, 6.2V, 500mW, Axial, DO-35 | 5 ea |
| Diode | 1N4001, 100V, 1 Amp, Rectifier, Axial | 5 ea |
| Diode | 1N4148, Switching, Signal, Axial | 10 ea |
| Resistor | 20 Ohms, 1/4 Watt, 5%, Carbon Film | 5 ea |
| Resistor | 56 Ohms, 1/4 Watt, 5%, Carbon Film | 5 ea |
| Resistor | 82 Ohms, 1/4 Watt, 5%, Carbon Film | 5 ea |
| Resistor | 150 Ohms, 1/4 Watt, 5%, Carbon Film | 5 ea |
| Resistor | 220ohms 5% or 221 Ohms, 1/4 Watt, 1%, Carbon Film | 5 ea |
| Resistor | 390 Ohms, 1/4 Watt, 5%, Carbon Film | 5 ea |
| Resistor | 430 Ohms, 1/4 Watt, 5%, Carbon Film | 5 ea |
| Resistor | 510 Ohms, 1/4 Watt, 5%, Carbon Film | 5 ea |
| Resistor | 680 Ohms, 1/4 Watt, 5%, Carbon Film | 5 ea |
| Resistor | 1.2K, 1/4 Watt, 5%, Carbon Film | 5 ea |
| Resistor | 2.7K, 1/4 Watt, 5%, Carbon Film | 5 ea |
| Resistor | 3.3K, 1/4 Watt, 5%, Carbon Film | 5 ea |
| Resistor | 4.7K, 1/4 Watt, 5%, Carbon Film | 5 ea |
| Resistor | 6.8K, 1/4 Watt, 5%, Carbon Film | 5 ea |
| Resistor | 11K, 1/4 Watt, 1%, Carbon Film | 5 ea |
| Resistor | 24K, 1/4 Watt, 5%, Carbon Film | 5 ea |
| Resistor | 39K, 1/4 Watt, 5%, Carbon Film | 5 ea |
| Resistor | 56K, 1/4 Watt, 5%, Carbon Film | 5 ea |
| Resistor | 82K, 1/4 Watt, 5%, Carbon Film | 5 ea |
| Resistor | 120K, 1/4 Watt, 5%, Carbon Film | 5 ea |
| Resistor | 200K, 1/4 Watt, 5%, Carbon Film | 5 ea |
| Resistor | 680K, 1/4 Watt, 5%, Carbon Film | 5 ea |
| Resistor | 820K, 1/4 Watt, 5%, Carbon Film | 5 ea |
| Resistor | 1.0M, 1/4 Watt, 5%, Carbon Film | 5 ea |
| Resistor | 2.7M, 1/4 Watt, 5%, Carbon Film | 5 ea |
| Capacitor | 7.5pF, 50v, NPO, Ceramic Disc | 2 ea |
| Capacitor | 15pF, 50v, NPO, Ceramic Disc | 2 ea |
| Capacitor | 33pF, 50v, NPO, Ceramic Disc | 2 ea |
| Capacitor | 220pF, 50v, NPO, Ceramic Disc | 2 ea |
| Capacitor | 470pF, 50v, NPO, Ceramic Disc | 2 ea |
| Capacitor | 820pF, 50v, NPO, Ceramic Disc | 2 ea |
| Capacitor | 1200pF, 250v, Metal Polyester | 2 ea |
| Capacitor | 2200pF, 50v, X5F, Ceramic Disc | 2 ea |
| Capacitor | .022uF, 50v, X7R, Ceramic Disc | 2 ea |
| Capacitor | .033uF, 250v, Metal Polyester | 2 ea |
| Capacitor | .056uF, 50v, X7R, Ceramic Disc | 2 ea |
| Capacitor | .15uF, 50v, X7R, Ceramic Disc | 2 ea |
| Capacitor | 1.0uF, 100v, 85° C, Aluminum, Radial | 2 ea |
| Capacitor | 3.3uF, 50v, 85° C, Aluminum, Radial | 2 ea |
| Capacitor | 6.8uF, 35v, 85° C, Aluminum, Radial | 2 ea |
| Capacitor | 10uF, 16v, 85° C, Aluminum, Radial | 2 ea |
| Capacitor | 22uF, 10v, 85° C, Aluminum, Radial | 2 ea |
| Capacitor | 33uF, 10v, 85° C, Aluminum, Radial | 2 ea |
| Capacitor | 47uF, 16v, 85° C, Aluminum, Radial | 2 ea |
| Capacitor | 180uF, 25v, 85° C, Aluminum, Radial | 2 ea |
| Capacitor | 220uF, 10v, 85° C, Aluminum, Radial | 2 ea |
| Capacitor | 470uF, 16v, 85° C, Aluminum, Radial | 2 ea |
| Capacitor | 1200uF, 10v, 85° C, Aluminum, Radial | 2 ea |
| Capacitor | 1500uF, 16v, 85° C, Aluminum, Radial | 2 ea |
| Capacitor | 1.0uF, 25V, Tantalum, Radial | 2 ea |
| Capacitor | 3.3uF, 16V,Tantalum, Axial | 2 ea |
| Capacitor | 10uF, 10V, Tantalum, Radial | 2 ea |
| Potentiometer | 470 Ohms, Single-Turn, PCB Mount | 1 ea |
| Potentiometer | 1.0K, Single-Turn, PCB Mount | 1 ea |
| Potentiometer | 10K, Single-Turn, PCB Mount | 1 ea |
| Potentiometer | 100K, Single-Turn, PCB Mount | 1 ea |
| Potentiometer | 220K, Single-Turn, PCB Mount | 1 ea |
| Potentiometer | 320K, Single-Turn, PCB Mount | 1 ea |
| Potentiometer | 1.0M, Single-Turn, PCB Mount | 1 ea |
| Battery Clip | 9V, Snap-type, 2 wires | 1 ea |
| Speaker | 8 Ohms, .1 Watt, Round, Miniature | 1 ea |
| Switch | Pushbutton, SPST Momentary, PCB Mount | 2 ea |
| Switch | Slide, SPDT Momentary, PCB Mount | 2 ea |
| Microphone | Electret, Panasonic | 1 ea |
| Header | Male, 8-pin .100" Centers, Square Post, Breakable | 1 ea |
| Jumper | Shorting Plug for Header, .100" Spacing | 2 ea |
